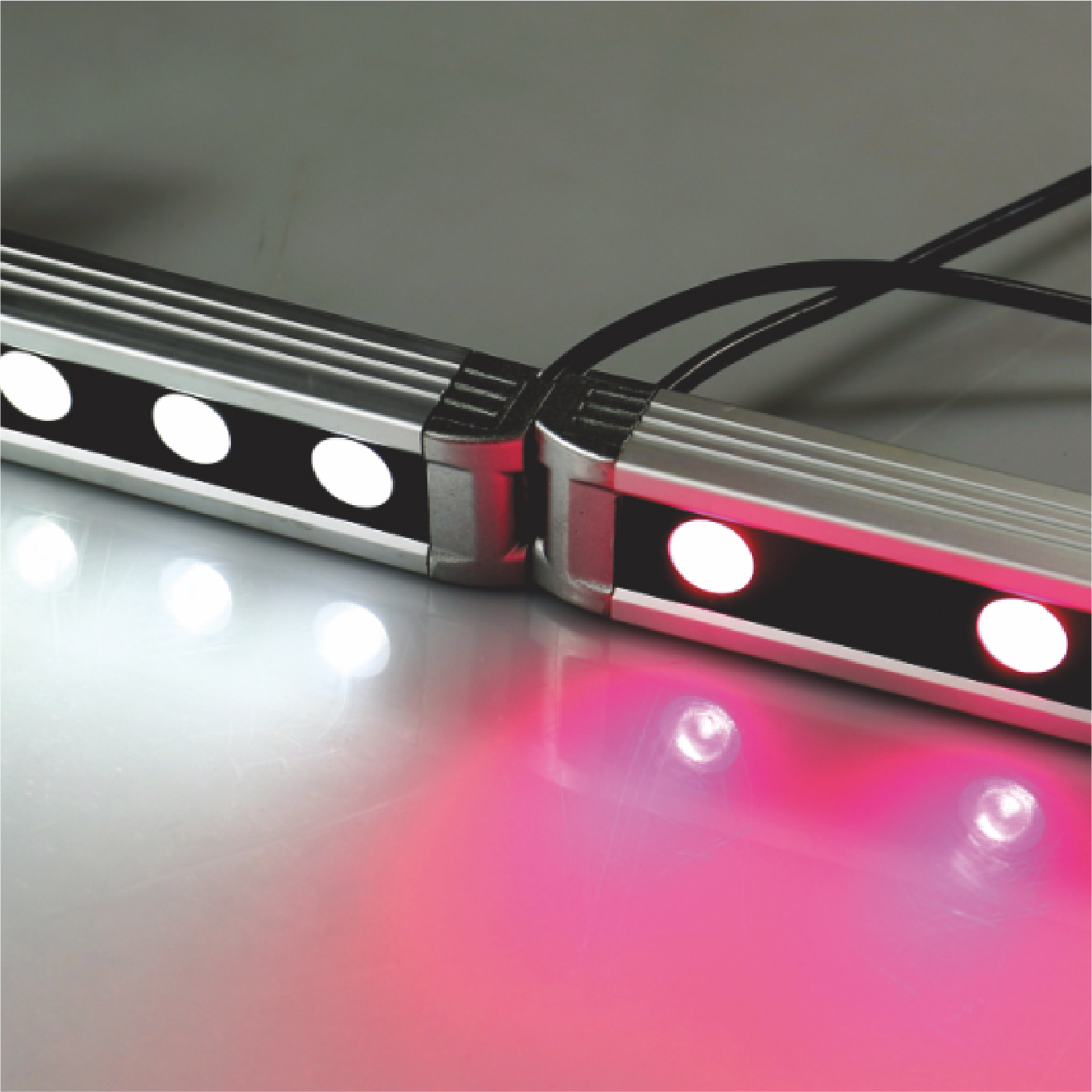

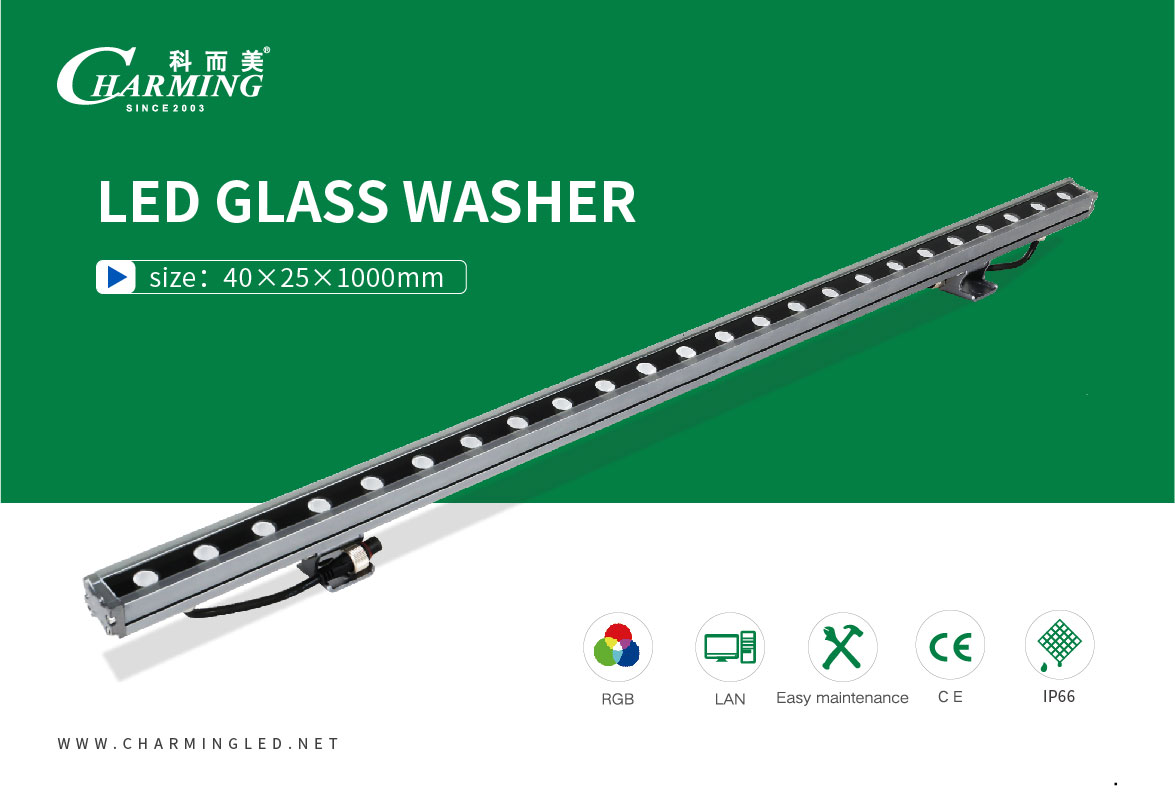

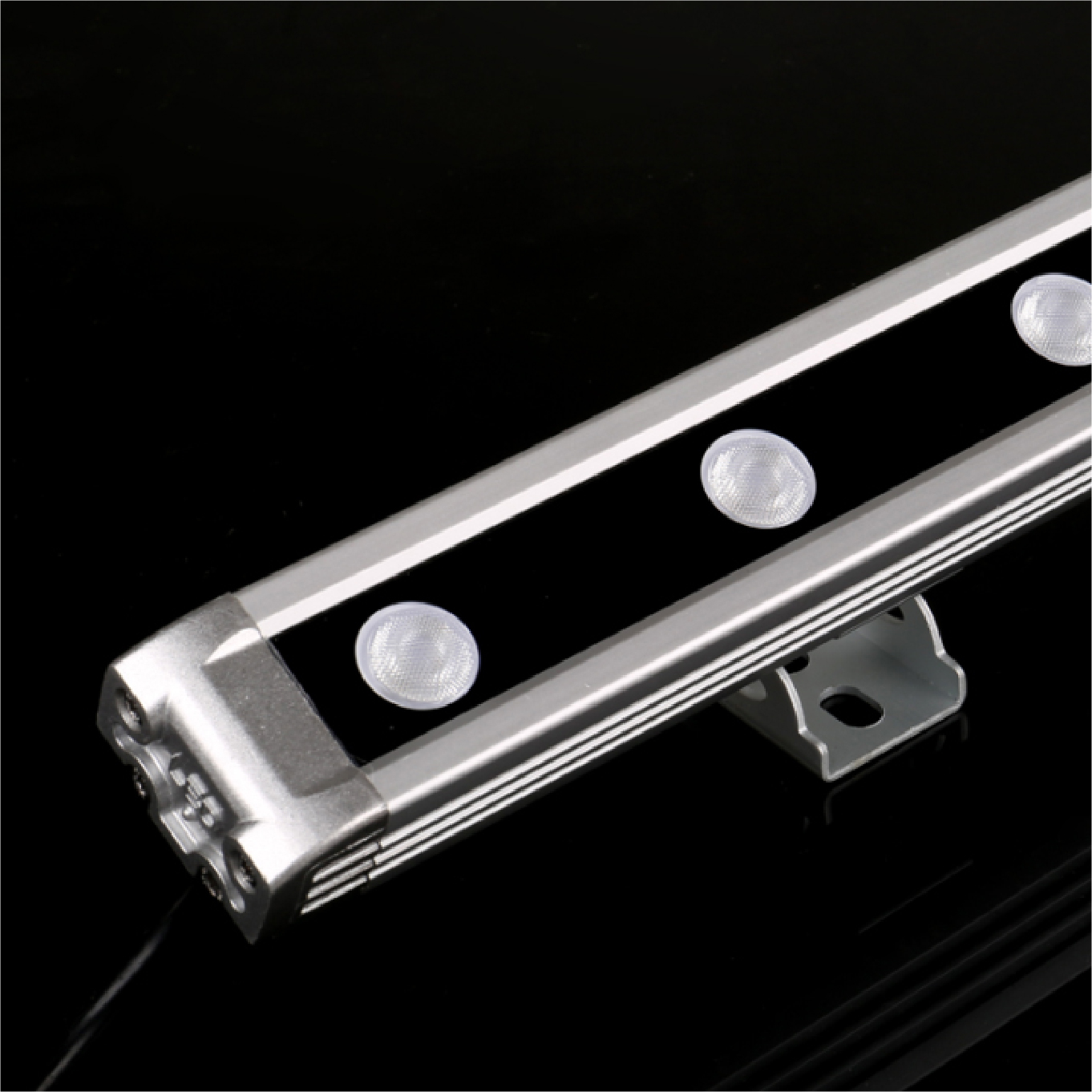

LED Glass Washerr

LED Glass Washerr

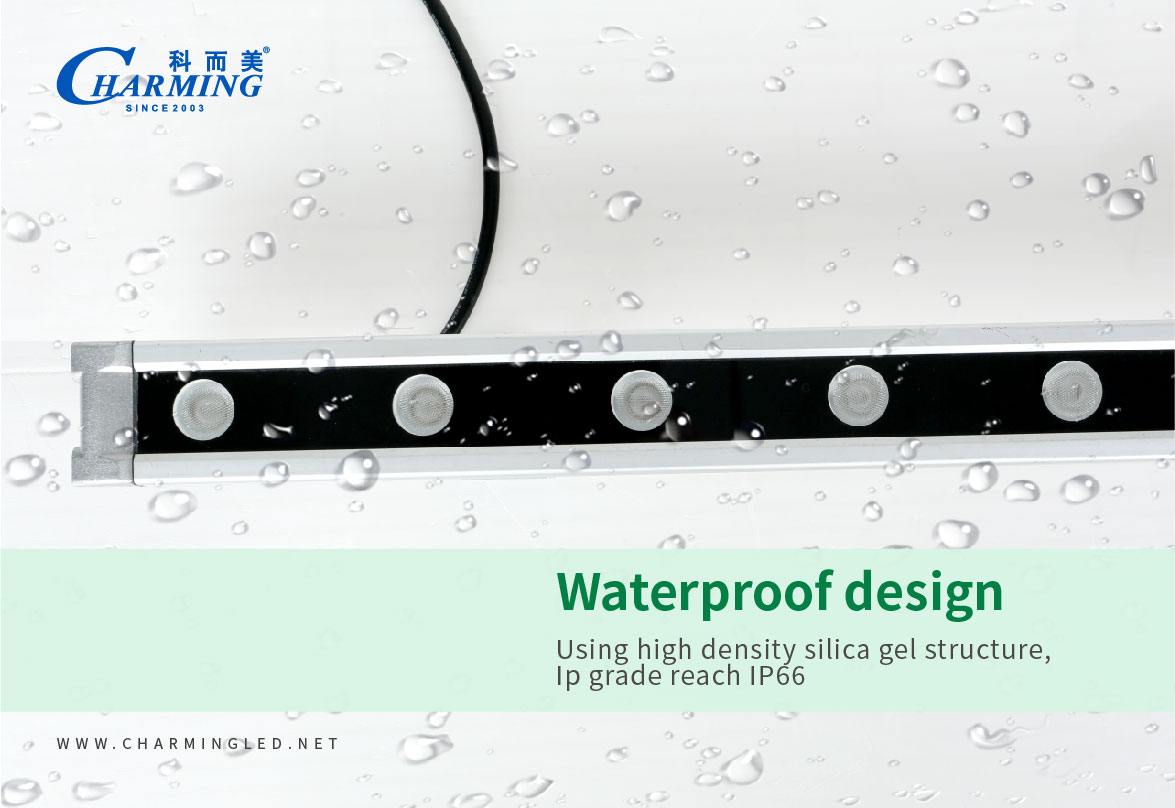

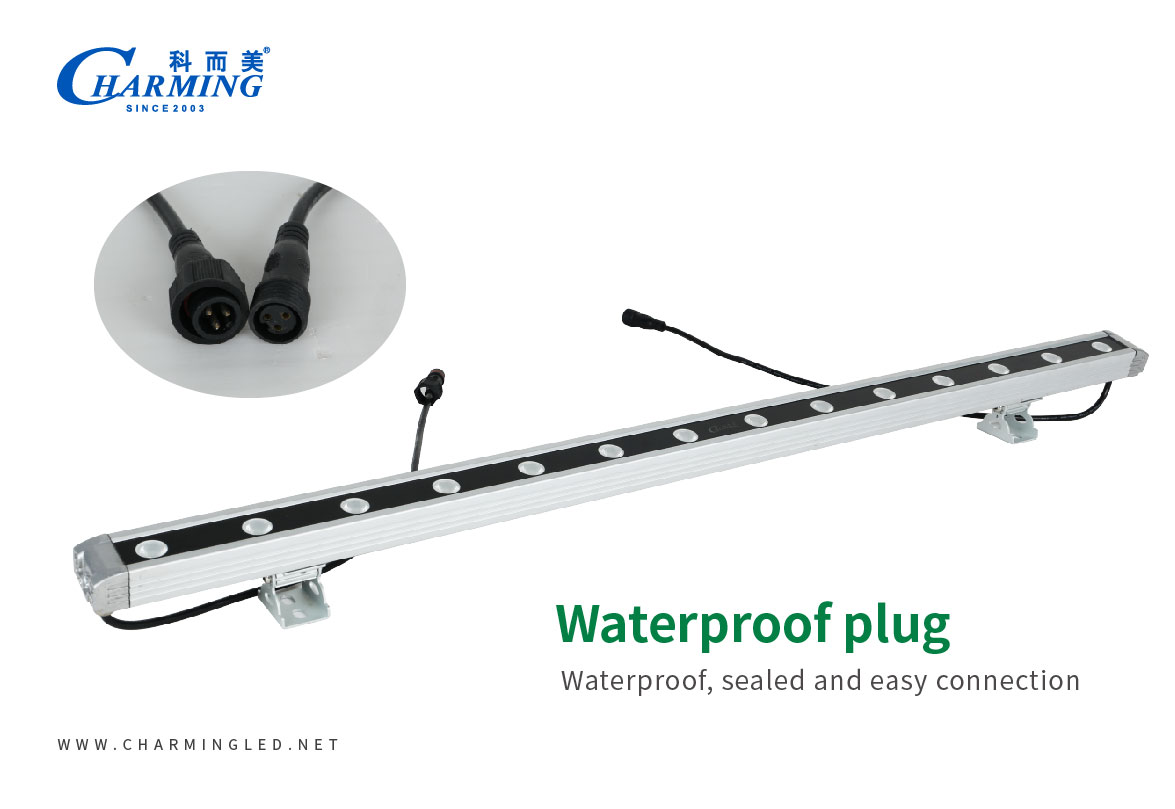

 Using high density silica gelstructure, waterproof grade

     up to Ip66

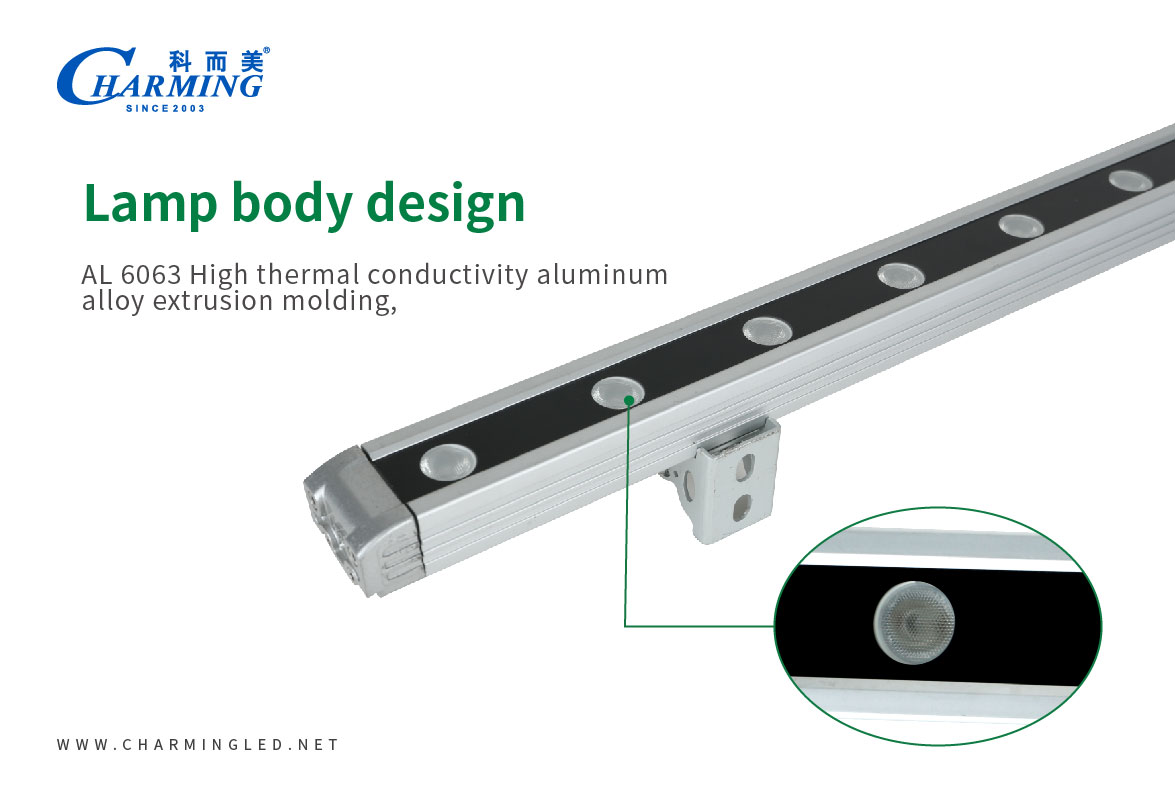

 AL 6063 high thermal conductivity aluminumalloy

     extrusion molding, anodized surface treatment

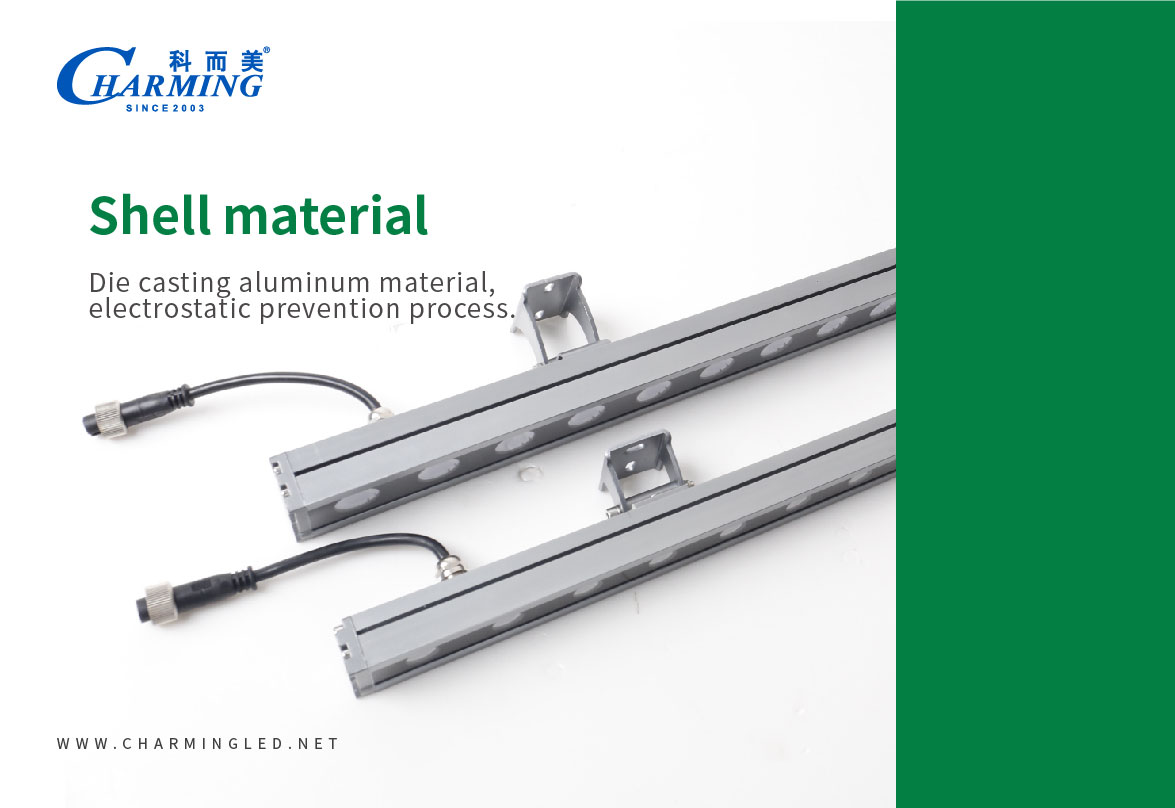

 Die casting aluminum material,surface electrostatic

     spray treatment

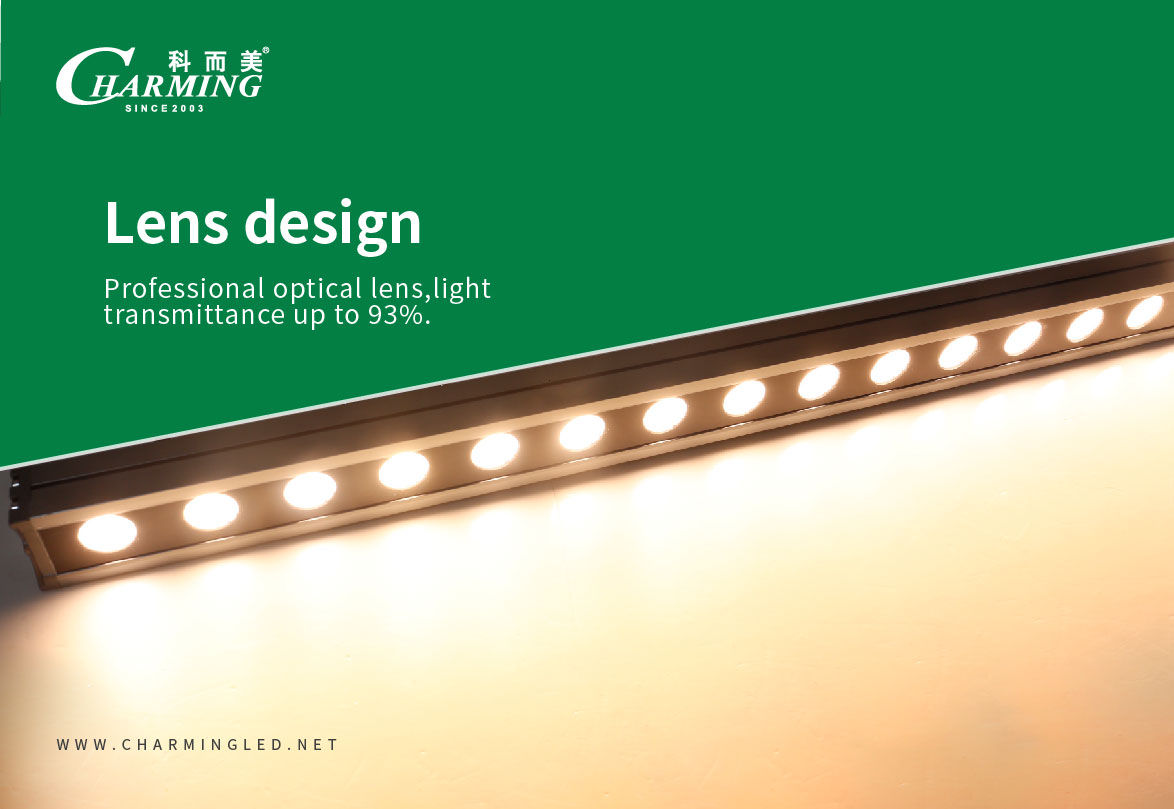

 Professional optical lens, light transmittance up to 93%

Immediately consult

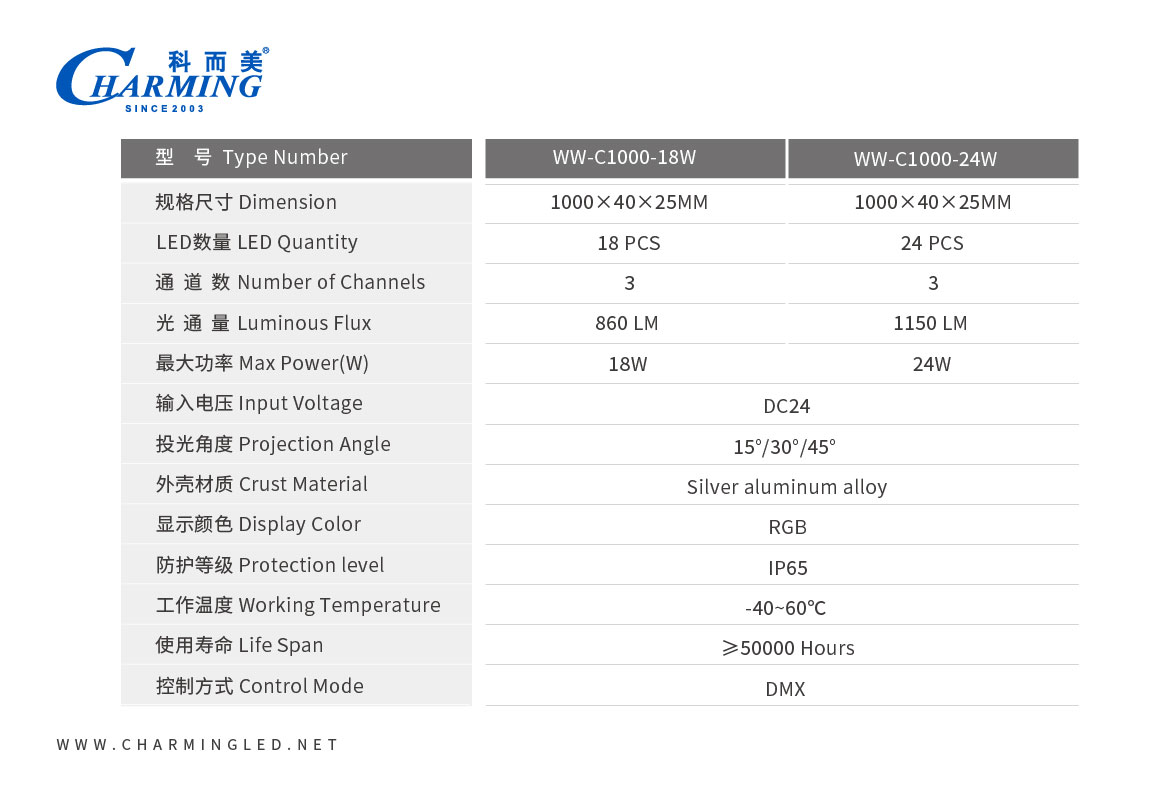

Product parameters

Type Number WW-C1000-18W WW-C1000-24W
Product  Code 54.03.008.016 54.03.008.017
LED Quantity  18 RGB/W 24 RGB/W
Maximum powe(W) 18W 24W
Light quantity(LM) 860LM 1150LM

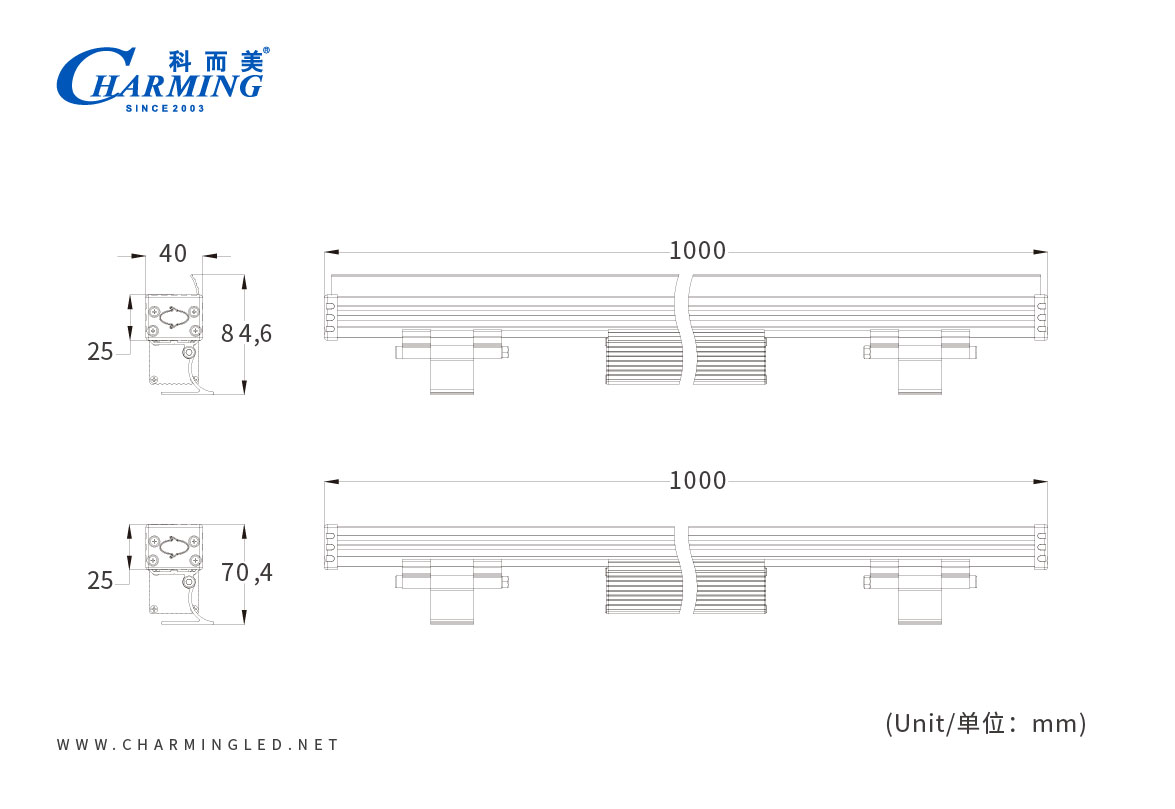

 Lamp size(mm) 40X32X1000mm
Applied light distance >4M
Light source Epileds
Net weight(kg) 1.8KG
Housing material Aluminum alloy tempered glass
Protection level IP65
Lamp color Steel gray

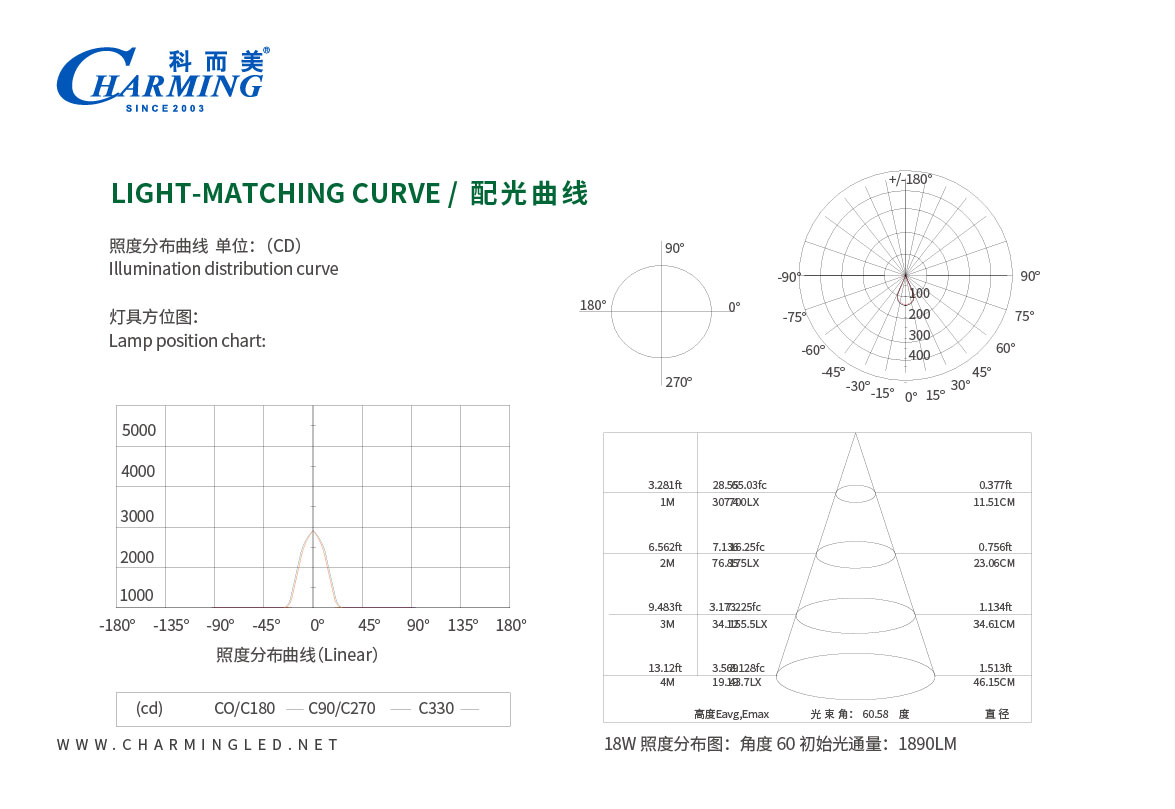

Beam angle 60°
Life length 50000H
Working voltage DC24V
Environmental temperature -30℃~+60℃

×
