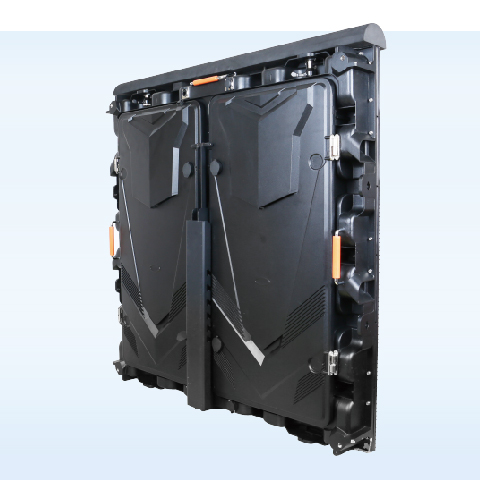

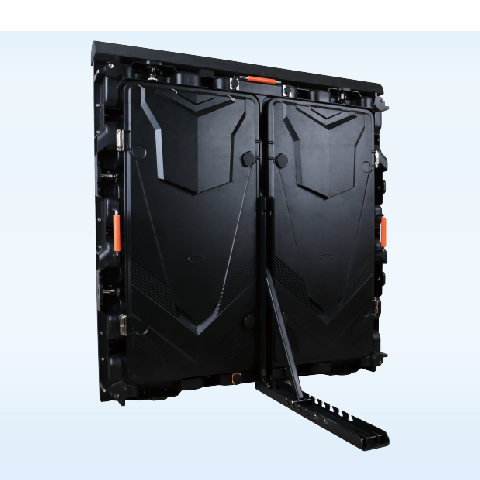

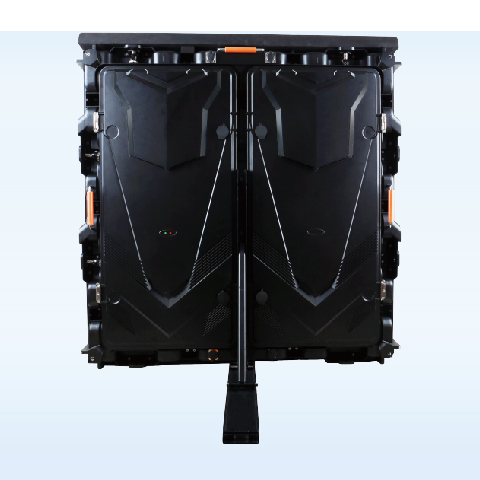

LED Stadium Display

LED Stadium Display

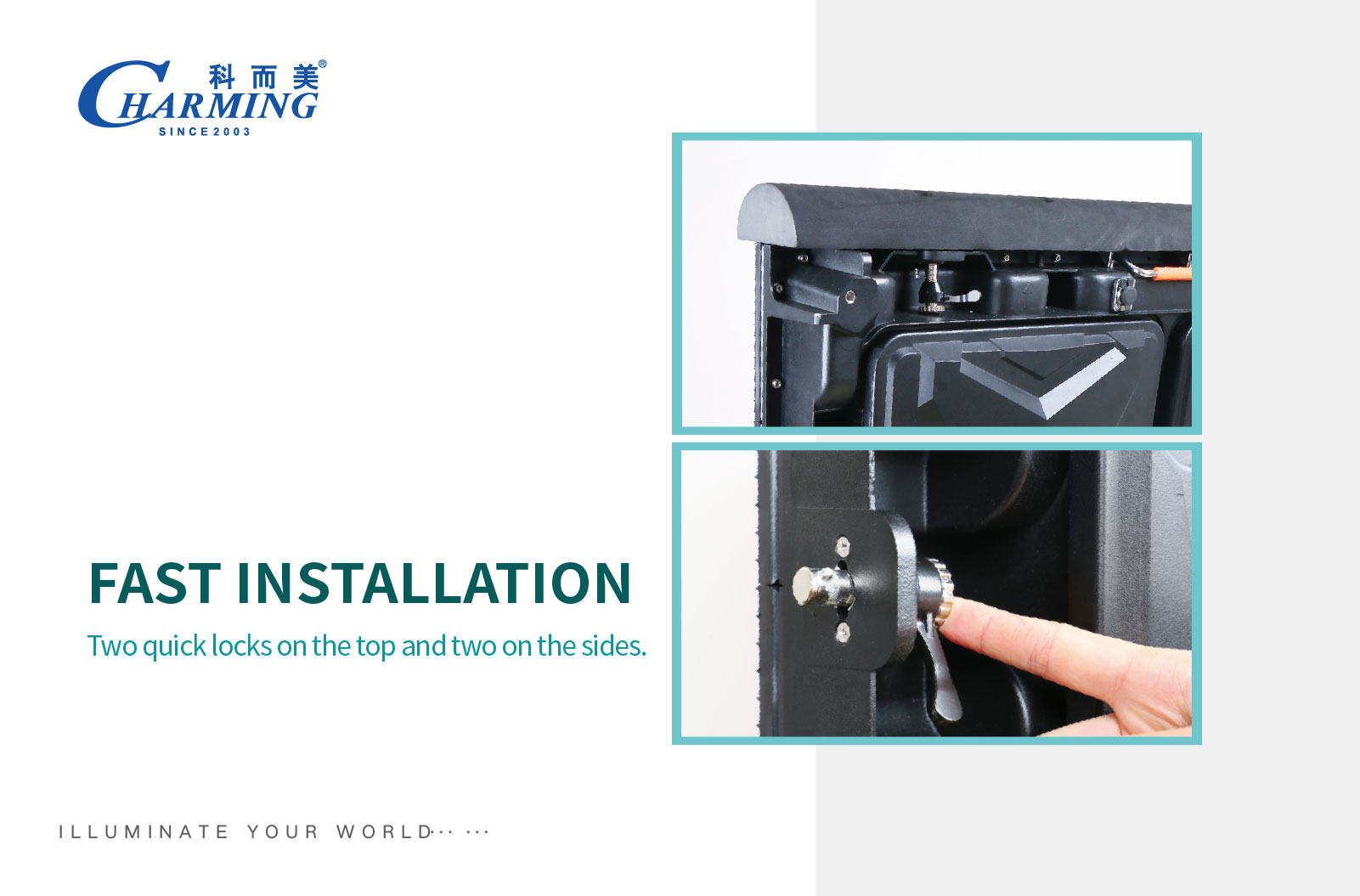

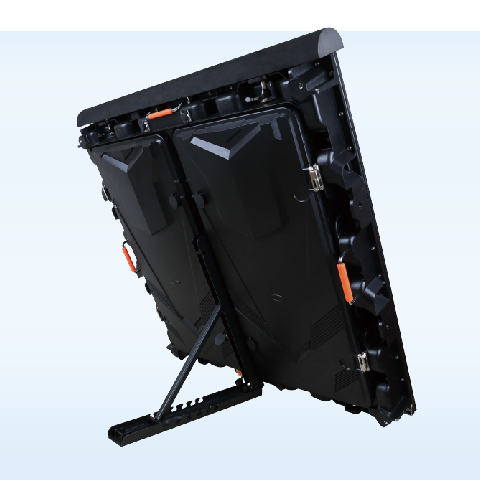

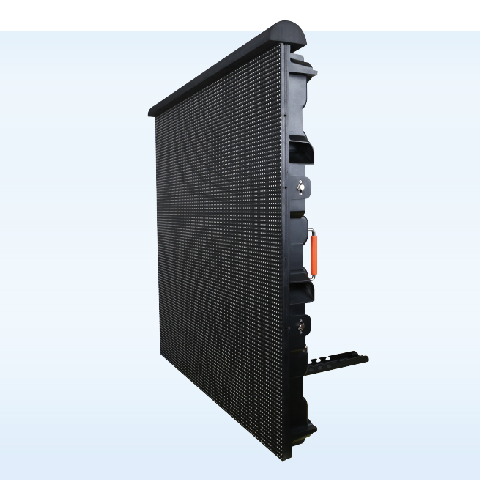

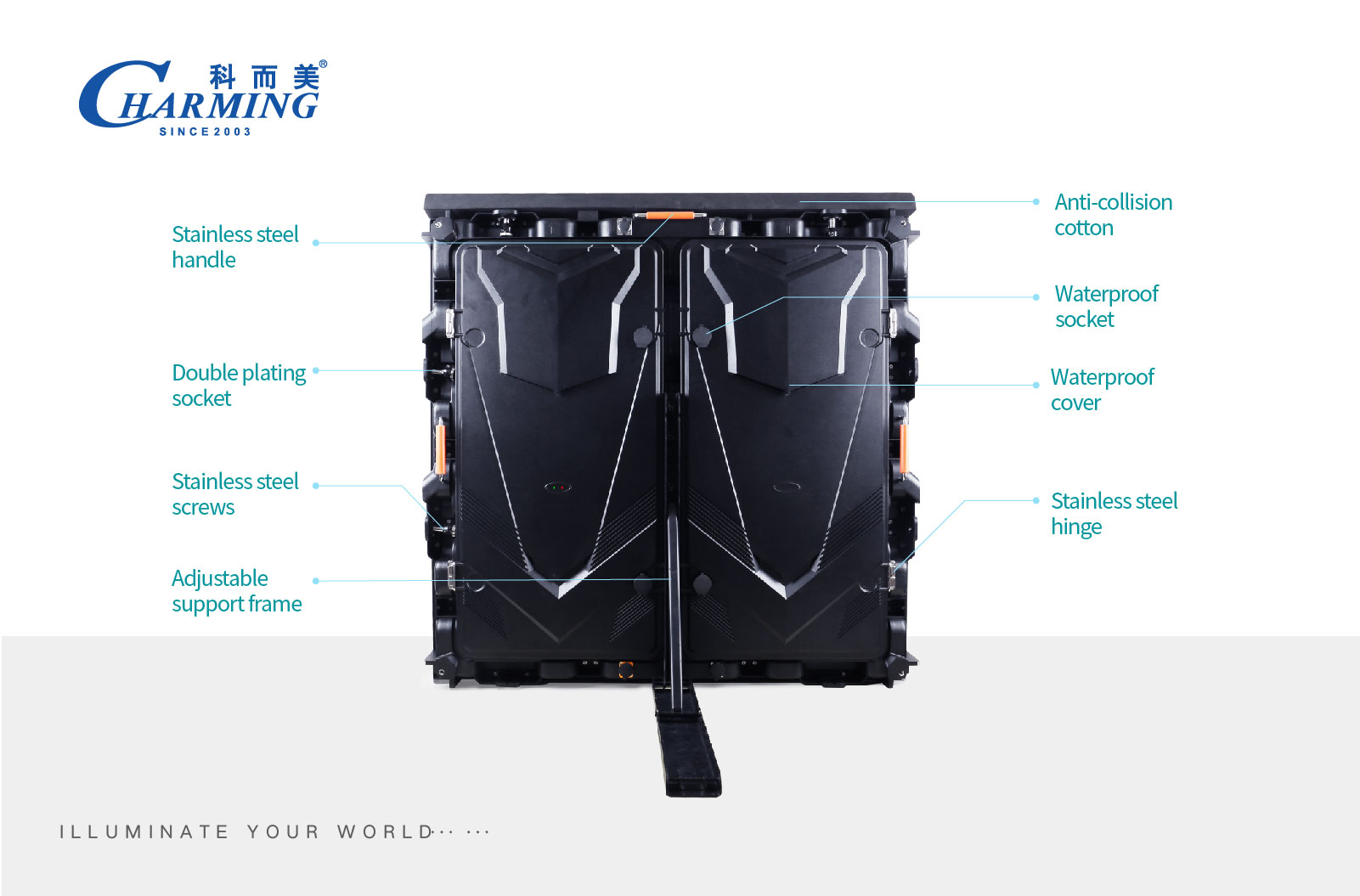

▪ Fast installation, two easy locks on the top and two on the side.
▪ Positioning pin on the top, installed by connector

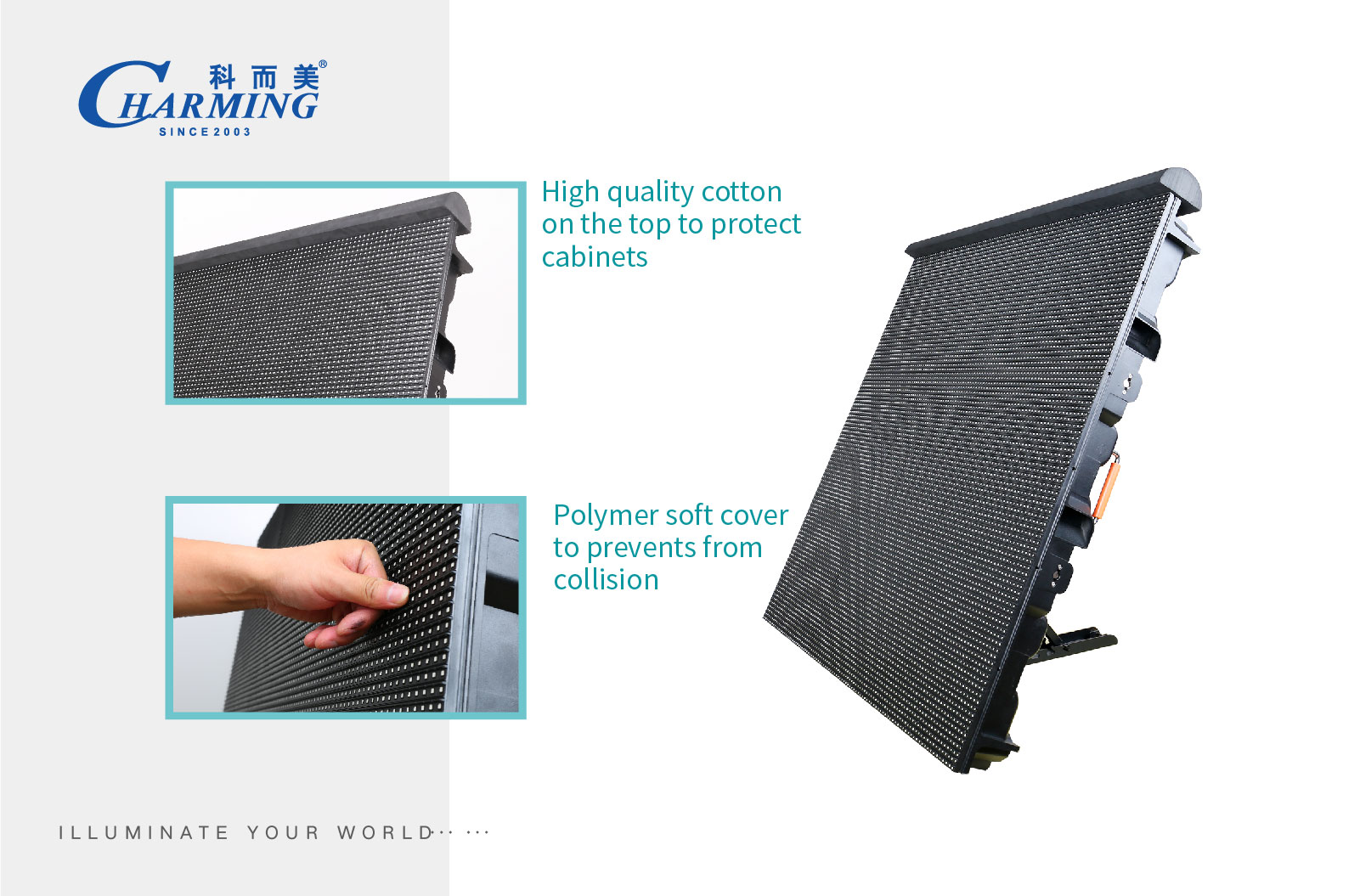

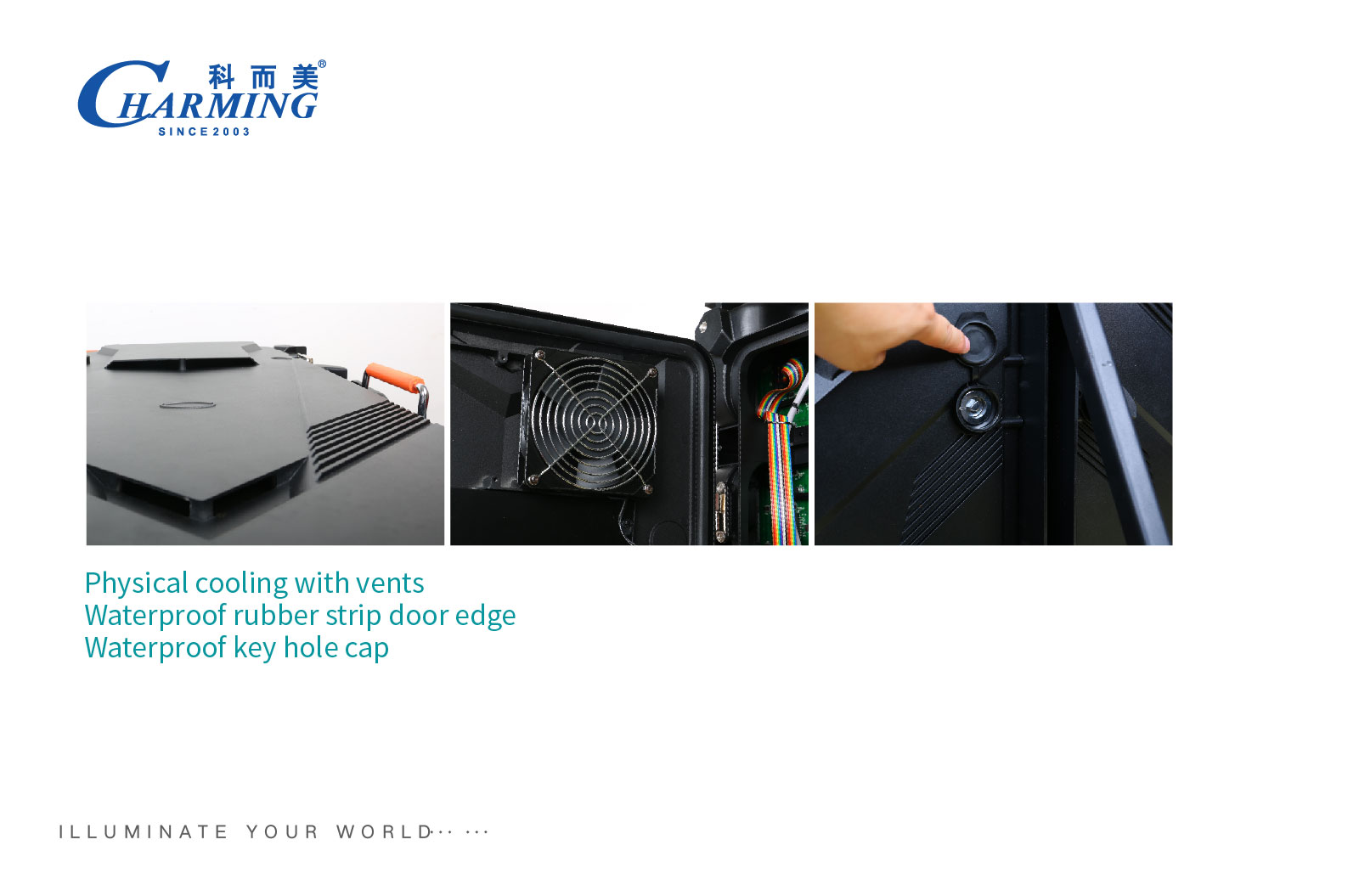

▪ Waterproofing structure with retaining cover

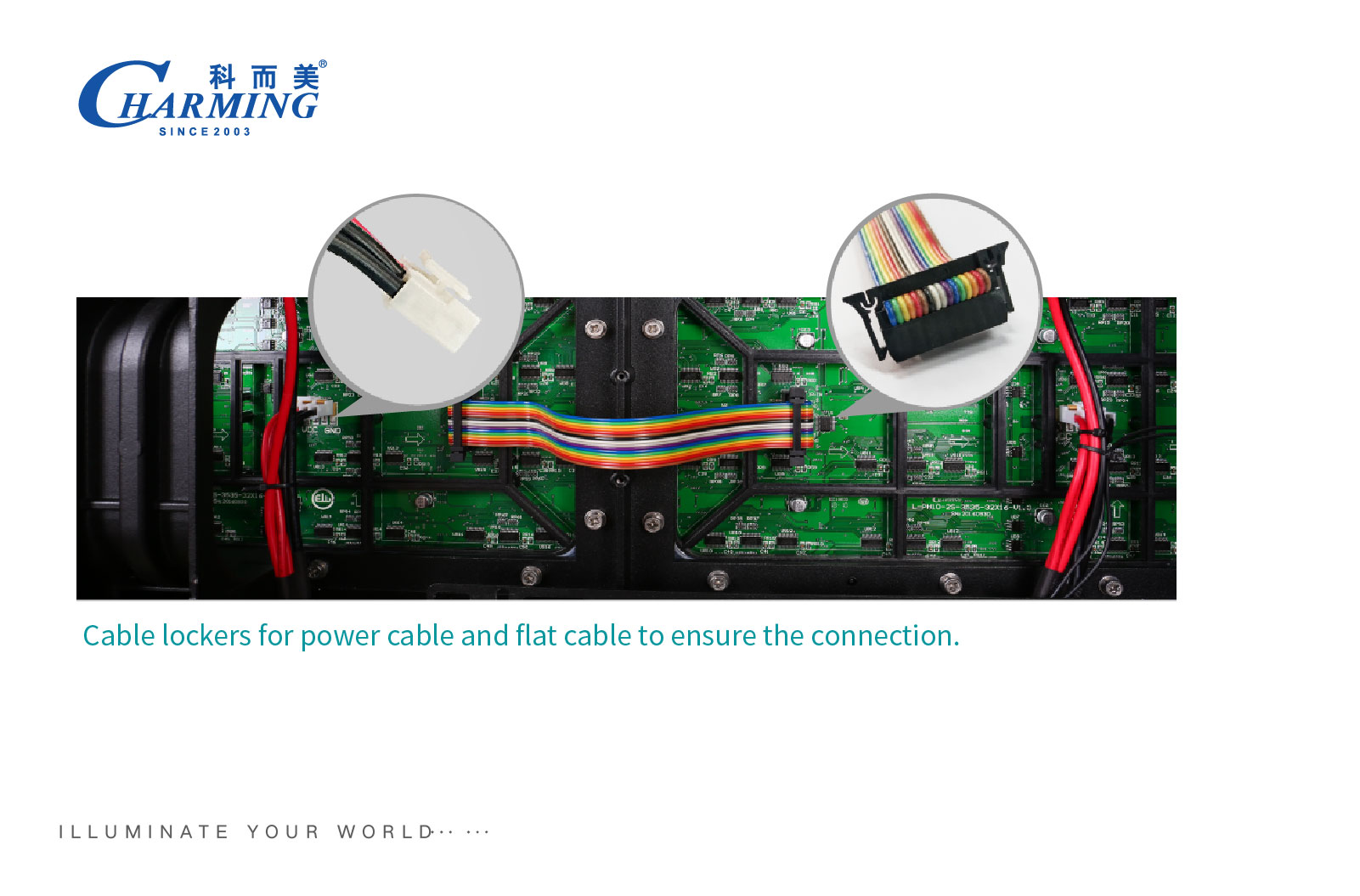

▪ Signal cord and power cord with lock to avoid loose
▪ Waterproofing structure with retaining cover

Immediately consult

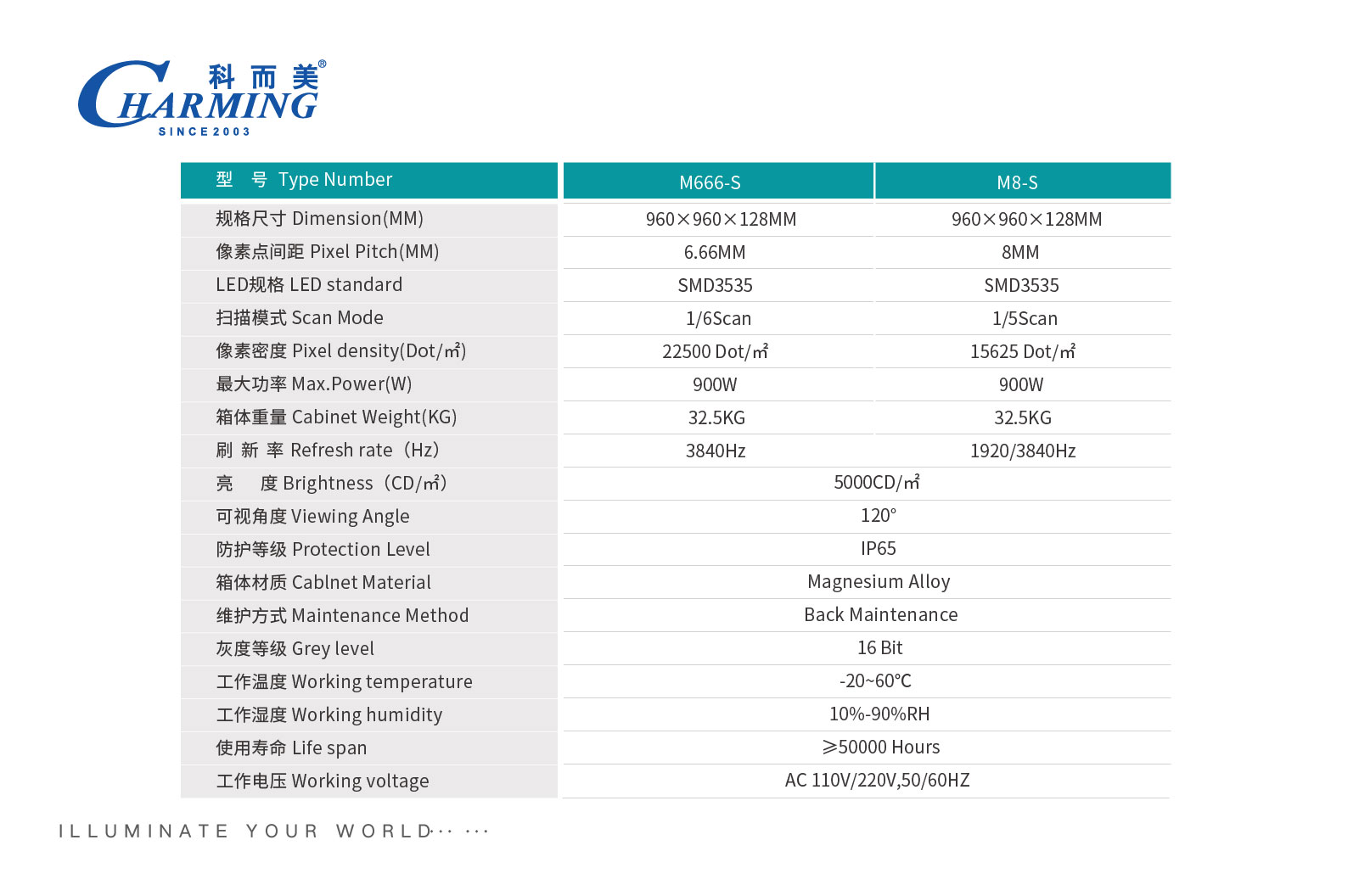

parameter list

Pixel Pitch10.0mm

Pixel Density10000 Dot/㎡

LED SizeSMD3535

Drive TypeConstant Drive

Scan Type1/2 Scan

Grey Scale16384

Refresh Frequency≥1920Hz

Screen Brightness≥5000 CD/㎡

Best Viewing Distance>10M

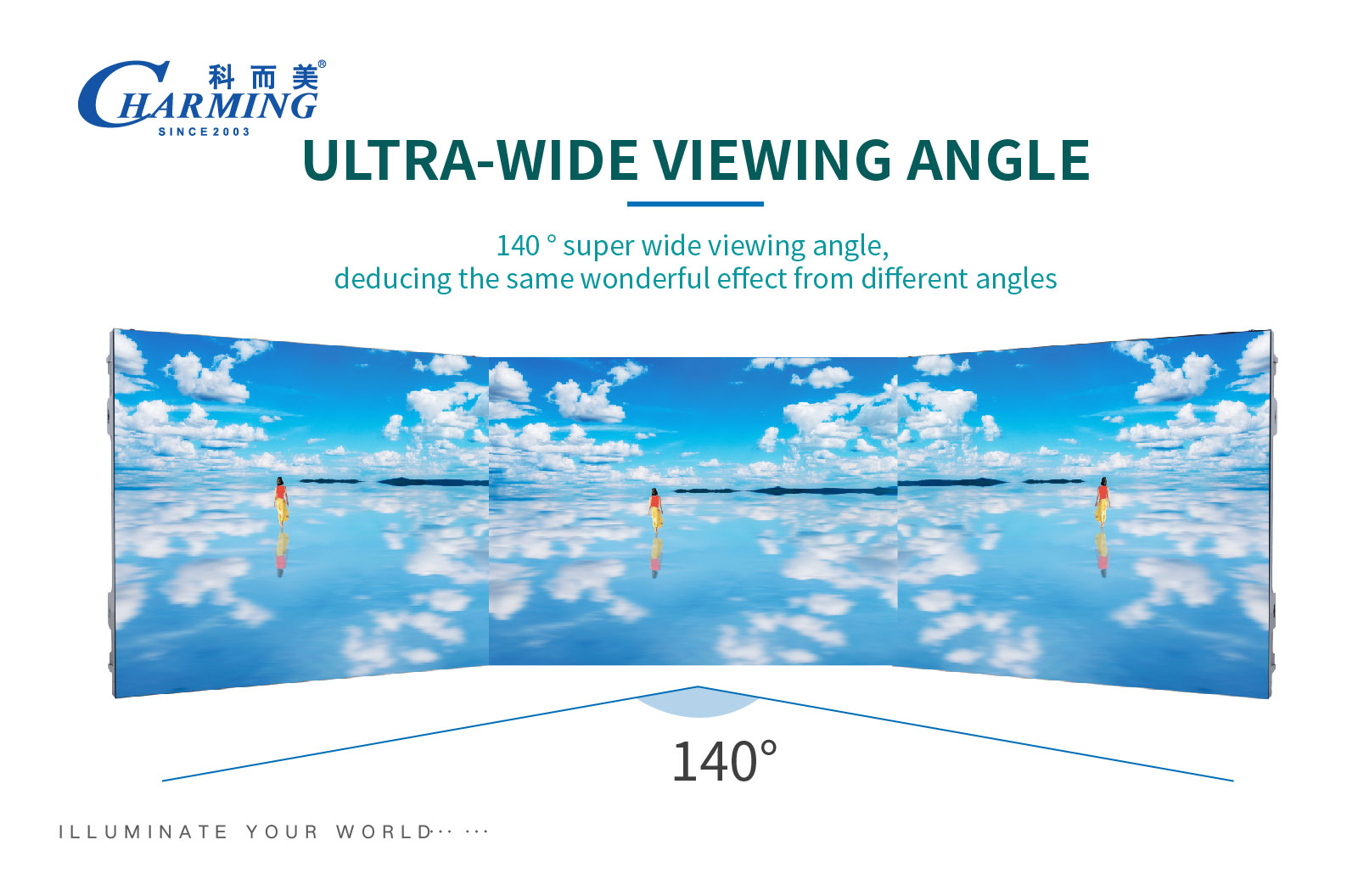

View Anglehorizontal:120°,perpendicular:110°

Cabinet Max Power1200W

Miaintenance MethodBack Maintenance

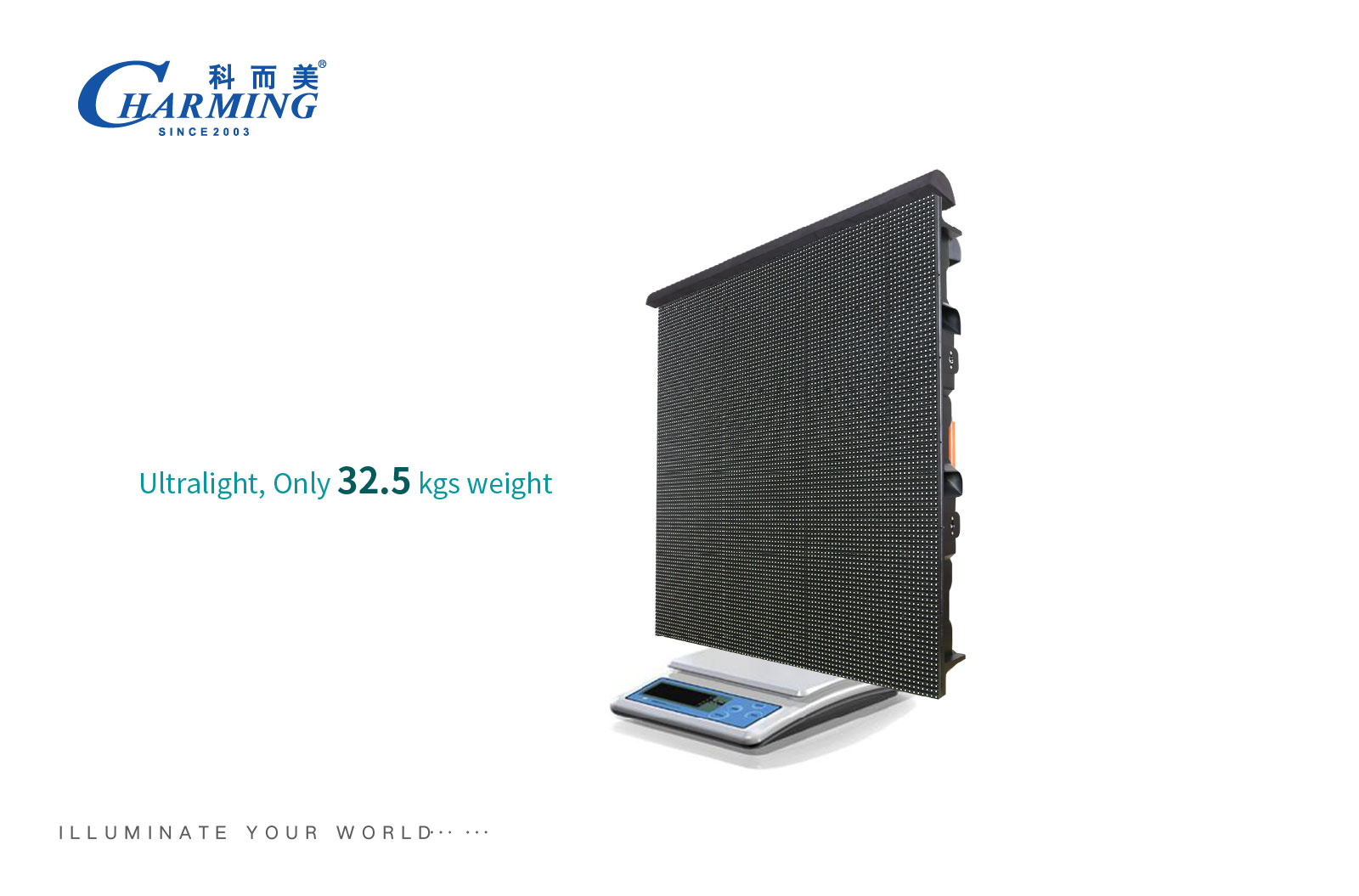

Cabinet Weight32.5kg

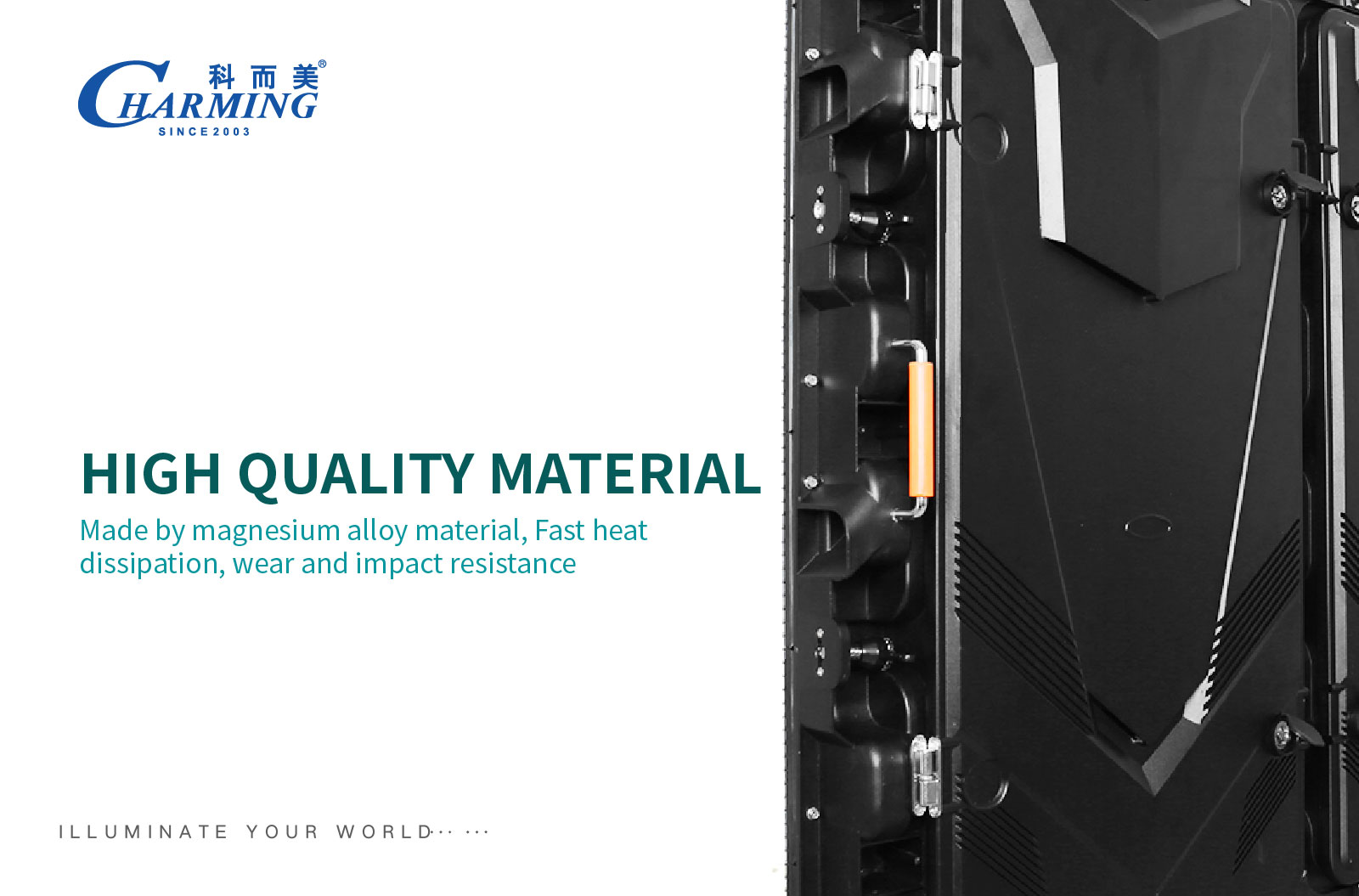

Cabinet MaterialMagnesiume Alloy

IP GradeIP65

Working Temperature-20~50℃

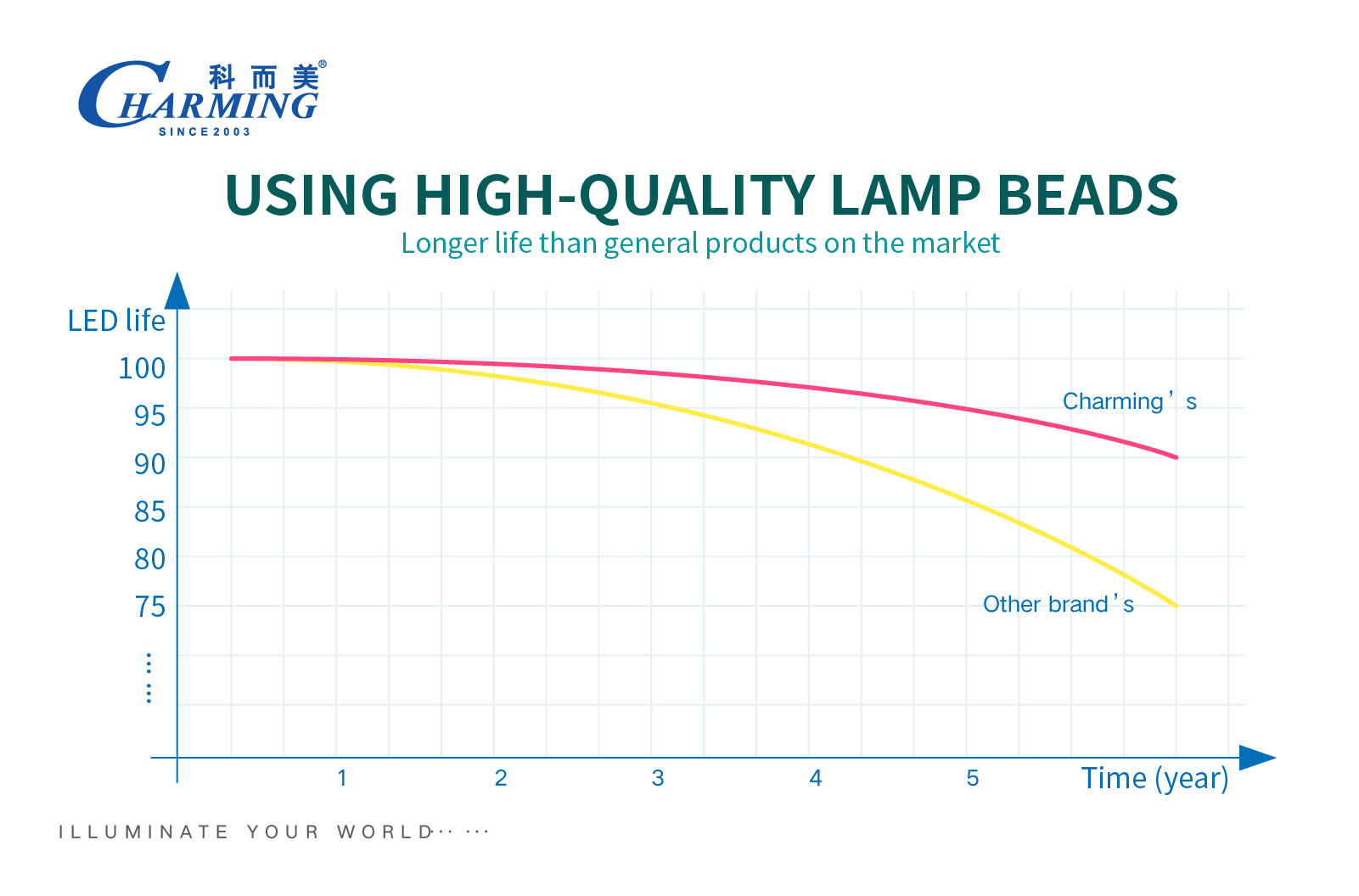

Life Span≥30,000 Hours

Working VoltageAC 220V/(110V)±15%
